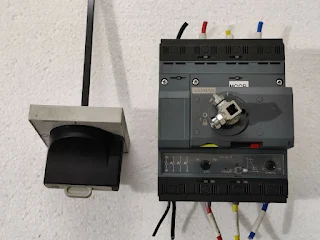

Siemens 3VT1 Circuit Breaker 3VT1704-2EC46-
|
||
|
Mfr. Part Number: |
3VT1704-2EC46- |
|
Manufacturer: |
Siemens |
|
Description: |
Siemens 3VT1 |
|
Full Description: |
·
CIRCUIT BREAKER 3VT1 STANDARD BREAKING CAPACITY ICU=25KA,
415V AC 4-POLE, SYSTEM PROTECTION OVERCURRENT RELEASE TM, LI IN= 63A RATED
CURRENT IR= 50... 63A OVERLOAD PROT. II= 315... 630A, SHORT-CIRCUIT
PROTECTION N CONDUCTOR W/O PROTECTION WITHOUT AUXILIARY RELEASE WITHOUT
AUXILIARY/ALARM SWITCH ·
Operating Frequency :- 120 1/h ·
Insulation Voltage /Rated Value :- 690 V ·
Protection Class IP :- IP40 ·
Rated Value :- 63 A ·
Derating Temperature/ For the rated value of the
Continous current :- 40 ˚C ·
Operating
Frequency 1/ rated value :- 50 Hz ·
Operating
Frequency 2/ rated value :- 60 Hz ·
Operating
Voltage rated vale / maximum :- 690 V ·
Operating
Voltage for main current circuit / at AC / at 50 Hz / maximum :- 690 V ·
Operating
Voltage for main current circuit / at AC / at 60 Hz / maximum :- 690 V ·
Operating
Voltage for main current circuit / at DC / maximum :- 440 V ·
Operating
Current at 40 ˚C / rated value :- 63 A ·
Operating
Current at 50˚ C / rated value :- 57 A ·
Mounting Position :- with vertical mounting
surface +/-180° rotatable, with vertical mounting surface +/- 30° tiltable to
the front and back ·
Mounting Type :- Fixed Mounting ·
Ambient Temperature During Operation / minimum :-
- 40˚C ·
Ambient Temperature During Operation / maximum
:- 55˚C ·
Ambient Temperature During storage / minimum :-
-40˚C ·
Ambient Temperature During Storage / maximum :- 55˚C ·
Current
Rating :- 40 Amp ·
Voltage
:- 415 VAC |
|
Condition: |
Used / Working |
|
Price: |
Sales.plcadvance@gmail.com |
