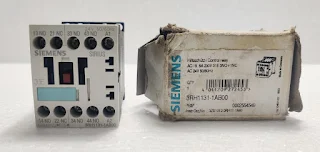

Siemens Sirius 3RH1131-1AB00 Control Relay
|
||
|
Mfr. Part Number: |
3RH1131-1AB00 |
|
Manufacturer: |
Siemens |
|
Description: |
Siemens Sirius |
|
Full Description: |
·
CONTACTOR
RELAY, 3NO+1NC, AC 24 V, 50 HZ, SCREW CONNECTION, SIZE S00 ·
Siemens
Sirius 3RH1131-1AB00 10 AMP AC Control Relay with 3 normally open and 1
normally closed contacts and a 24v50/60Hz coil. This 4 pole relay comes
with screw terminals, is finger safe and in an IP20 enclosed degree of
protections with optional terminals covers. ·
Contactor
relay, 3 NO + 1 NC 24 V AC 50/60 Hz Screw terminal size S00 !!! Phased-out
product !!! Successor is SIRIUS 3RH2 Preferred successor type is
>>3RH2131-1AB00<< ·
Product
Lifecycle (PLM) :- PM490:Start of final year of support ·
Product
Designation :- Contactor Relay ·
Insulation
Voltage :- 690 V ·
Protection
class IP :- IP20 ·
Control
supply Voltage with AC at 50 Hz rated Value :- 24 V ·
Control
supply Voltage with AC at 60 Hz rated Value :- 24 V ·
Mounting
Position :- +/-180° rotation possible on vertical mounting surface; can be
tilted forward and backward by +/- 22.5° on vertical mounting surface ·
Mounting Type
:- screw and snap-on mounting ·
Ambient Temperature
during Operation :- -25..+60˚C ·
Ambient Temperature
during Storage :- -55…+80˚C ·
Ambient Temperature
during Transport :- -55…+80˚C |
|
Condition: |
Used / Working |
|
