Siemens Sirius 3RV2011-1AA10 Motor Protection Circuit Breaker
|
||
|
Mfr. Part Number: |
RWR62.732 |
|
Manufacturer: |
Siemens |
|
Description: |
Siemens RWR62.732 |
|
Full Description: |
·

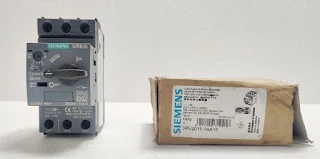

The SIRIUS circuit breaker
3RV2011-1AA10 from Siemens in size S00 is a compact, current-limiting circuit
breaker for load feeders up to 0.55 kW at AC-3/400 V. Due to a short-circuit
protection of 21 A and an adjustable overload protection of 1.1-1.6 A, the
circuit breaker 3RV2011-1AA10 is ideally suited for the protection of motors. ·
Circuit breaker size S00 for
motor protection, CLASS 10 A-release 1.1...1.6 A N-release 21 A screw
terminal Standard switching capacity ·
Product Family :- SIRIUS 3RV2
motor starter Protectors ·
Product Lifecycle (PLM) :- PM300:
Active Product ·
Operating Voltage :- 690 V ·
Adjustable Response Current :-
1.1-1.6 A ·
Operating Current at AC-3/400 V
:- 1.6 A ·
Impulse Voltage Resistance :- 6
kV ·
Ambient Operating Temperature
min. :- -20 C ·
Ambient Operating Temperature
max. :- 60 C ·
Protection Rating :- IP20 ·
Connection :- Screw- Type
Terminal |
|
Condition: |
Used / Working |
|
Price: |
Sales.plcadvance@gmail.com |
