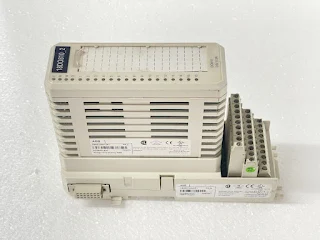

ABB DO810 24v, 0.5A 3BSE008510R1 PR:E With 3BSE013230R1 PR:G
|
||
|
Mfr. Part Number: |
ABB DO810 24v, 0.5A 3BSE008510R1 |
|
Manufacturer: |
ABB |
|
Description: |
ABB DO810 24v, 0.5A 3BSE008510R1 |
|
Full Description: |
·
ABB DO810 24v, 0.5A 3BSE008510R1:-
·
Isolated
in two groups of 8 channels. 0.5A, Short circuit proof. Use Module
Termination Unit TU810, TU812, TU814, TU830, TU833. ·
16 channels for
24 V d.c. current sourcing outputs ·
2 isolated groups of 8 channels with process
voltage supervision ·
Output status
indicators ·
OSP sets
outputs to predetermined state upon error detection ·
Short-circuit
protection to ground and 30 V ·
Over-voltage
and over-temperature protection ·
Signal
specification :- 24V d.c. (12 -32 V d.c.), 0.5 A ·
Number of
channels :- 16 ·
Isolation:- Groupwise isolated from ground ·
Output load :- <
0.4Ω ·
Current
limiting :- Short circuit proof current limited output ·
Maximum field
cable length :- 600meters (656 yards) ·
Rated
insulation voltage :- 50 V ·
Dielectric
testvoltage :- 500 V a.c. ·
Power
dissipation :- Typ. 2.1 W ·
Current consumption +5 VModulebus :- 80mA ·
Temperature,
Operating :- 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55
°C ·
Temperature,
Storage :- -40 to +70 °C (-40 to +158 °F) ·
Relative
humidity :- 5 to 95 %, non-condensing ·
Max ambient
temperature:- 55 °C (131 °F),
forvertical mounting in compact MTU 40 °C (104°F) ·
Protection
class :- IP20 ·
3BSE013230R1:- ·
Compact
Module Termination Unit 2x8 signal terminals. ·
Power Supply Module |
|
|
|
Condition: |
Used / Working |
|
