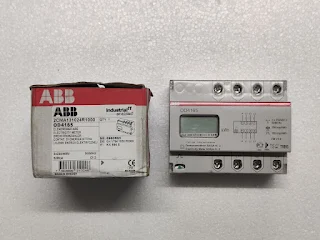

ABB OD4165 Electricity Meter 2CMA131024R100
|
||
|
Mfr. Part Number: |
ABB OD4165 Electricity Meter |
|
Manufacturer: |
ABB |
|
Description: |
ABB OD4165 Electricity Meter |
|
Full Description: |
·
Data from
ODINsingle is collected via pulse output or serial communication. ·
The pulse output generates pulses
proportionally to the measured energy. ·
ODIN comes with
an infrared port for communication with an external Serial Communication
Adapter (SCA). ·
There are SCAs
for M-Bus, RS-232, Ethernet, GSM/GPRS and KNX ·
ODINsingle is a
meter that is very easy to handle. ·
It is easy to
read the large LCD display with 6 mm high digits and symbols for load
indication and communication. ·
The meter has a LED on the front that
flashes proportionally to the measured energy. ·
The energy
consumption of the meter is low, less than 1.0 VA. ·
Voltage range :-
-20% to +15% ·
Max current :- 65
A ·
Start current :-
25 mA ·
Power
consumption of current circuits :- < 3 VA/phase ·
Frequency :- 50/60 Hz ·
Voltage:- 3x230/400
V AC ·
Temperature
range Operating :- -25 to +55˚C ·
Temperature
range Storage -25 to +70˚C ·
Protection
against:- IP20 ·
Connection area
in the connecting terminal:- 0.5 – 2.5
mm2 ·
External pulse
voltage:- 5 – 40 V DC ·
Max. current:- 100 mA ·
Pulse frequency
:- 100 imp/kWh ·
Display :- LCD
with 7 digits without a decimal place, 6 mm ·
Single phase ·
Direct connected up to 65 A ·
Backlit LCD
with 6 digits (6 mm digits) ·
Low power consumption ·
Resettable counter ·
2 DIN modules
width |
|
|
|
|
Condition: |
Used / Working |
|
