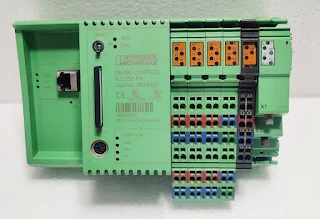

Phoenix Contact Inline Control ILC350PN Ord. No. 2876928
Mfr.
Part Number
:- Phoenix Contact
Inline Control ILC350PN
Manufacturer
:- Phoenix Contact
Description :-
Phoenix Contact
Inline Control ILC350PN
Full
Description :- Inline
Controller with PROFINET interface for coupling to other controllers and
systems, with programming options according to IEC 61131-3, complete with plug
and labeling field.
Number of control tasks :- 16
Device function :- PROFINET-Controller
Supply voltage:- 24 V DC ±5 %
Supply voltage range :- 20.4 V DC ... 30 V DC
Residual ripple:- ± 5 %
Maximum power dissipation for nominal condition :- max.
6 W
Supply voltage :- 7.5 V DC ±5 %
Supply voltage :- 24 V DC -15 % / +20 %
Current draw :- max. 8 A DC
Number of inputs :- 12
Connection technology:- 2-, 3-, 4-conductor
Ambient temperature (operation) :- -25 °C ... 55 °C
Ambient temperature (storage/transport) :- -25 °C ... 85 °C
Permissible humidity (operation) :- 10 % ... 95 % (non-condensing)
Air pressure (operation) :- 70 kPa ... 106 kPa (up to 3000 m above sea level)
Mounting type :- DIN rail mounting
Condition :- Used / Working
Price :- Sales.plcadvance@gmail.com
