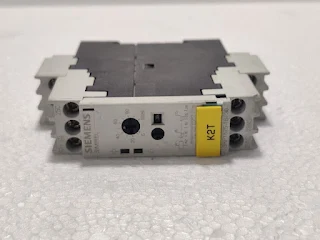

Siemens SIMREL 3RP1525-1BP30 Timing Relay
|
||
|
Mfr. Part Number: |
3RP1525-1BP30 |
|
Manufacturer: |
Siemens |
|
Description: |
Siemens SIMREL |
|
Full Description: |
·
Timing relay,
electronic Phased-out product !!! 2 change-over contacts, 15 time ranges 0.05
s...100 h 24 AC, 200...240 V and 24 V DC at 50/60 Hz AC with LED, Screw
terminal ·
Rated control supply voltage Us at AC 50HZ :- 200 - 240V ·
Rated control supply voltage Us at AC 60HZ :- 24 - 200V ·
Rated control supply voltage Us at DC :- 24 - 24V ·
Time range :- 0.05 - 100s ·
product
designation :- timing relay ·
product type
designation :- 3RP15 ·
surge voltage
resistance rated value :- 4000 V ·
protection
class IP :- IP20 ·
adjustable time
:- 0.05 s...100 h ·
thermal current
:- 5 A ·
control supply
voltage at AC at 50 Hz rated value :- 24 V ·
type of voltage
of the control supply voltage :- AC/DC ·
control supply
voltage at AC 60 Hz rated value :- 24 V ·
control supply
voltage frequency :- 50...60 Hz ·
influence of
the surrounding temperature :- ±5 % ·
power supply
influence :- ±1 % ·
fastening
method :- screw and snap-on mounting
onto 35 mm standard mounting rail ·
ambient
temperature during operation :- -25...+60 °C ·
ambient
temperature during storage :- -40...+85 °C ·
ambient
temperature during transport :- -40...+85 °C ·
relative
humidity during operation :- 10...95 % ·
installation
altitude at height above sea level maximum :- 2000m |
|
Condition: |
Used / Working |
|
Price: |
Sales.plcadvance@gmail.com |
