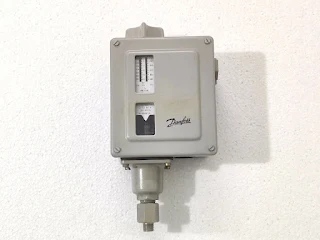

Danfoss RT116 Pressure Switch 0.2-1.3 Bar at 20-130KPa Differential 017A1689
Mfr.
Part Number:- Danfoss RT116 Pressure Switch
Manufacturer :- Danfoss
Description :- Danfoss
RT116 Pressure Switch
Full Description :- Regulation range [bar] Pe: 1.00 - 10.00, Differential [bar]:
0.33 - 1.30, Contact function: SPDT, Reset function: Auto, Pressure connection
type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure
rating IP: IP66, Max. Working Pressure [bar]: 22.0
Ambient
temperature range [max] :- 70˚C
Ambient
temperature range [min] :- -50˚C
Ambient
temperature range [max] :- 158˚F
Ambient
temperature range [min] :- -58˚F
Contact rating
:- AC15=3 A, 400 V,
AC1=10 A, 400 V, DC13=12 W, 220 V
AC3=4 A, 400 V, LR=28 A, 400 V
Differential [max]
:- 1.3 Bar
Differential [min] :- 0.33 Bar
Differential [max] :- 18.9 Psi
Differential [min] :- 4.8 Psi
Enclosure
rating IP :- IP66
Max. test
pressure Pe :- 25 Bar
Max. test
pressure :- 363 Psig
Volume :- 2.726
Liter
Max. Working
Pressure :- 22 Bar
Max. Working
Pressure :- 320 Psig
Regulation
range Pe [max] :- 10 Bar
Regulation
range Pe [min] :- 1 Bar
Regulation
range Pe [max] :- 145 Psig
Regulation
range Pe [min] :- 14.5 Psig
Condition :- Used / Working
Price :- Sales.plcadvance@gmail.com
