GE Fanuc IC693MDL940H Output Relay 2A 16PT
Mfr.
Part Number
:-

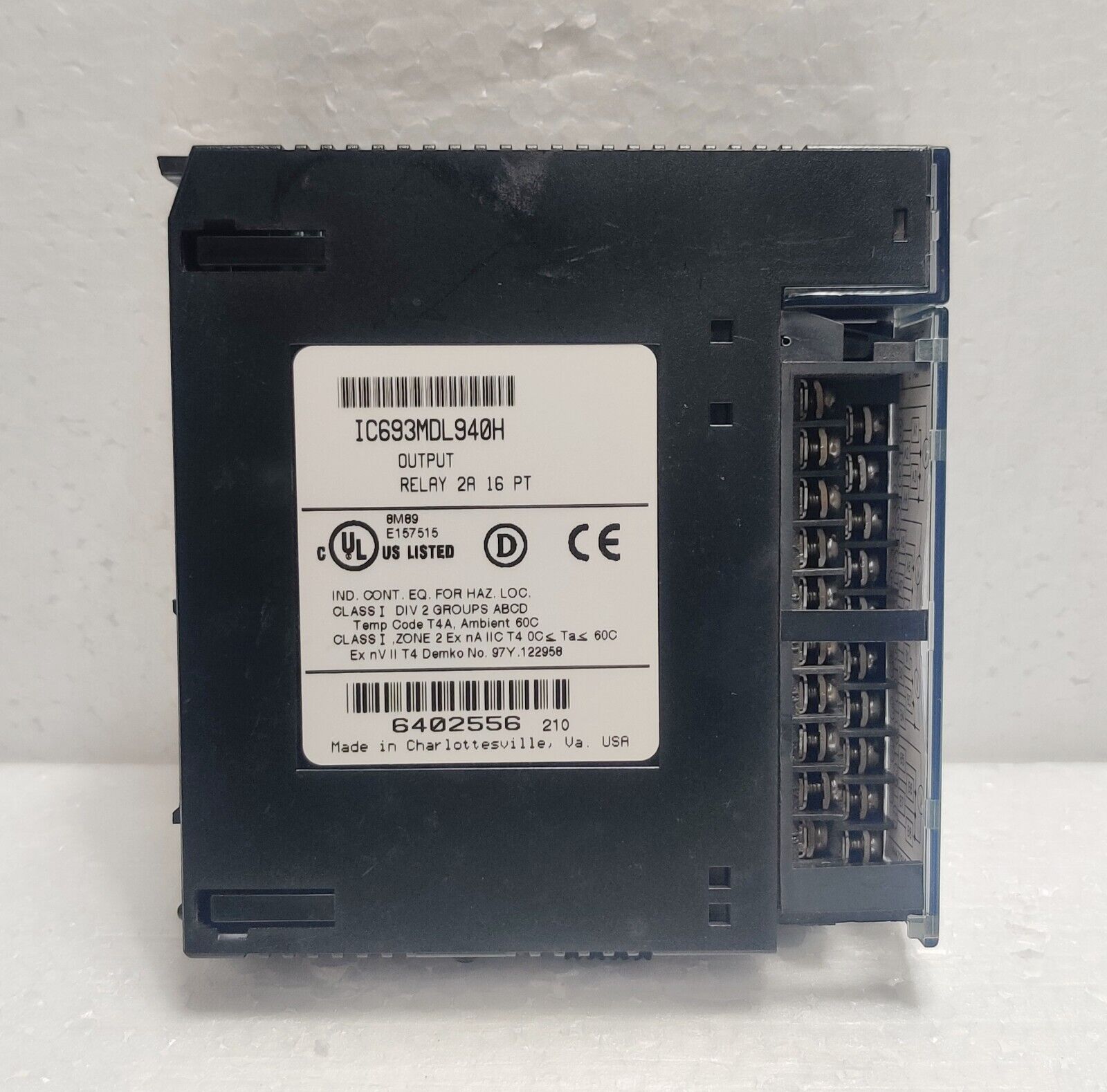

GE Fanuc IC693MDL940H Output Relay
Manufacturer
:- GE Fanuc
Description :-
GE Fanuc IC693MDL940H Output Relay
Full
Description :-
The GE
IC693MDL940H is a 16-point output module for the General Electric (GE) Fanuc
Series 90-30 Programmable Logic Controllers (PLCs).
It serves as the intermediary between the PLC
and various devices, allowing the PLC to control them through electrical relays.
The IC693MDL940 operates
in the voltage range of 5V to 30V DC supply.
At the frequency range of
50Hz to 60Hz, it operates in the voltage range of 5V to 250V.
Also, the module uses 16 output points in four
groups containing four output points in each group.
This module encounters the
maximum load of 2A per output and 4A per common.
The minimum load
encountered is 10mA. The top of the module IC693MDL940 hosts a LED
indicator which indicates the status of output points.
The inside surface of the
module provides the wiring information of the circuit.
Either of the DC or
AC power supply operate the field devices.
This module does not use
the fuses.
The response time for
switching on/off is 15msec. In 90-30 series PLC system, the user can also use
the IC693MDL940 in any of the slots of the baseplate.
Function:- Controls
external devices through 16 individual relays
Number of output
channels:- 16
Relay type:- Form C (SPDT - Single Pole, Double Throw)
Output voltage:- 120/240
volts AC
Frequency :- 50/60 Hz with AC
Output Current:- 2 Amps per
circuit, 4 amps per common
Output Voltage Range:- 5 to
30 volts DC, 5 to 250 volts AC
Condition :- Used / Working
Price :- Sales.plcadvance@gmail.com
