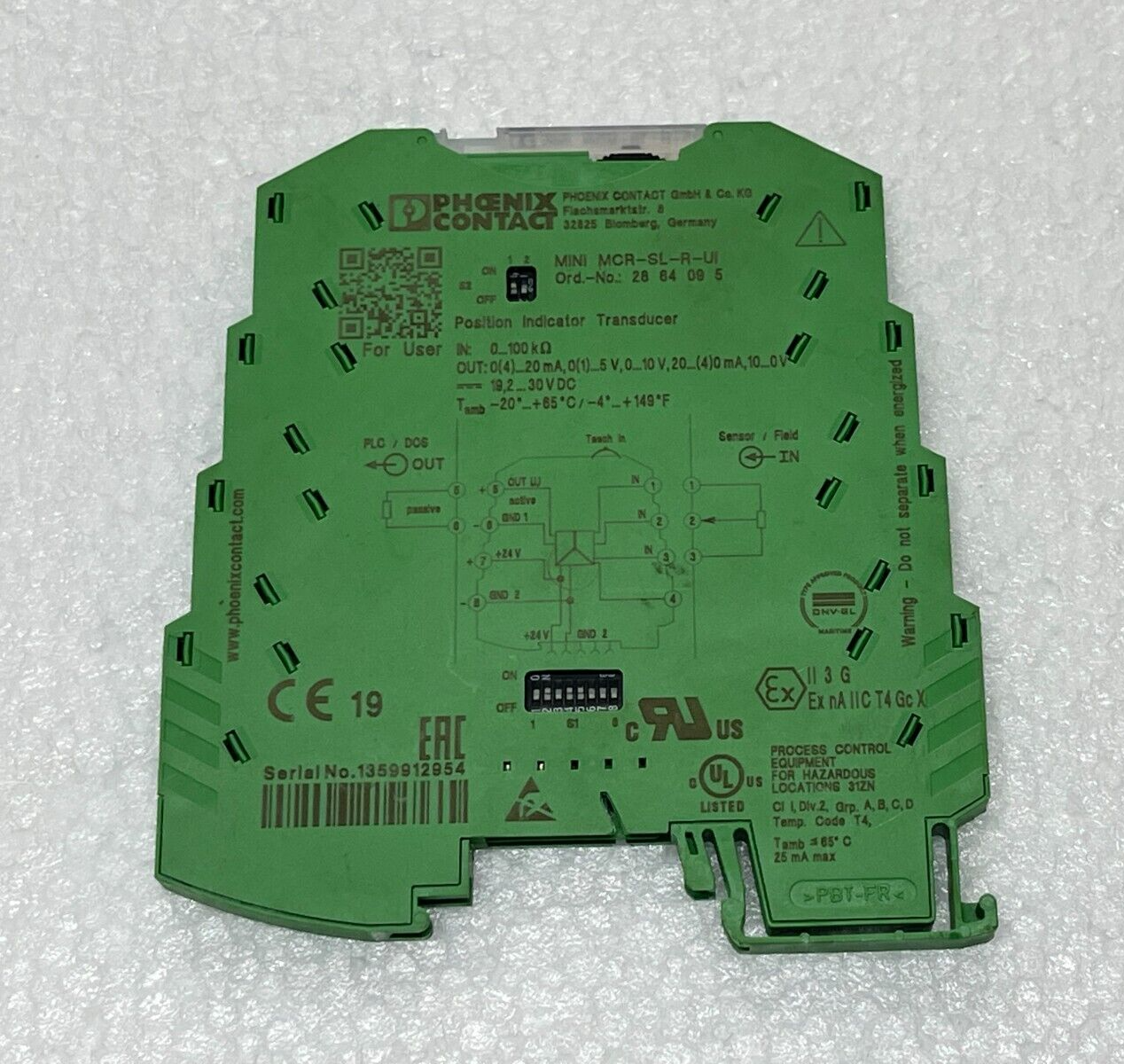

Phoenix Contact MINI MCR-SL-R-UI Transducer Ord. No. 2864095
Mfr.
Part Number
:- Phoenix Contact MINI MCR-SL-R-UI
Transducer Manufacturer
:- Phoenix Contact
Description :-
Phoenix Contact MINI MCR-SL-R-UI
Transducer
Full
Description :- The
6.2 mm wide MINI MCR-SL-R-UI... potiposition transducer converts potentiometer
positions as a percentage of an standard analog signal. If the potentiometer
range cannot be utilized to the full, an externally accessible slide switch is
used to set the upper and lower potiposition end values. The output signal
between 0 and 100% is based on this fixed end value.
Power (19.2 V DC to 30 V DC) can be supplied through
connection terminal blocks on the modules or in conjunction with the DIN rail
connector.
MCR potiposition transducer for
conversion of potentiometer positions into a standard analog signal, 0 Ω
input... 100 Ω to 0 kΩ ... 100 kΩ
Potentiometer resistance range :- 100 Ω ... 100 kΩ
Reference
voltage source :- < 3.6 V
Max. voltage output signal :- 12.5 V
Non-load voltage :- Approx. 12.5 V
Max. current output signal :- 23 mA
Ripple :- < 20 mVPP (at 500 Ω)
Load/output load current output :- < 500 Ω (20
mA) .
Behavior in the event of a sensor error :- Configurable
0 % ... 105 %
Supply voltage range :- 19.2 V DC ... 30 V DC (to
bridge the supply voltage, the DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81
GN, Order No. 2869728) can be used. It can be snapped onto a 35 mm DIN rail
according to EN 60715)
Typical current consumption :- < 25 mA (at 24 V DC)
Power consumption :- < 500 mW
Ambient temperature (operation) :- -20 °C ... 65 °C
Ambient temperature (storage/transport) :- -40 °C ... 85 °C
Conductor cross section, solid Screw connection :- 0.14 mm² ... 2.5 mm²
Conductor cross section, solid Spring-cage conn. :- 0.2
mm² ... 2.5 mm²
Conductor cross
section, stranded Screw connection :- 0.2 mm² ... 2.5 mm²
Conductor cross section, stranded Spring-cage conn.:-
0.2 mm² ... 2.5 mm²
Stripping length Screw connection :- 12 mm
Stripping length Spring-cage conn. :- 8 mm
Condition :- Used /
Working
Price :- Sales.plcadvance@gmail.com
