Phoenix Contact PLC-BSC-24DC/1IC/ACT

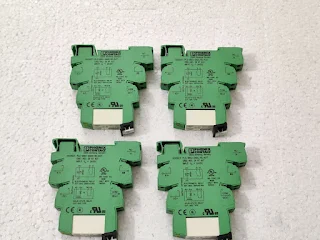

 Phoenix Contact PLC-BSC-24DC/1IC/ACT No. 2967837 Relay Base With Relay

Overview :-  Phoenix Contact PLC-BSC-24DC/1IC/ACT No. 2967837 Relay Base With Relay

Mfr. Part  Number :- Phoenix Contact PLC-BSC-24DC/1IC/ACT

Manufacturer :-  Phoenix Contact

Description :-  Phoenix Contact PLC-BSC-24DC/1IC/ACT

Full Description :- 14 mm PLC basic terminal block for high switch-on currents with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, with load return line connection (BB), 1 N/O contact, input voltage 24 V DC

Rated surge voltage :- 6 kV

Rated insulation voltage :- 250 V AC

Nominal input voltage UN :- 24 V DC

Compatible components :- Miniature relay, REL-MR-24DC/1IC/ACT; miniature optocoupler, OPT-24DC/24DC/5, OPT-24DC/230AC/2

Stripping length :- 8 mm

Screw thread :- M3

Conductor cross section rigid :- 0.14 mm² ... 2.5 mm²

Conductor cross section flexible :- 0.2 mm² ... 2.5 mm² (Single ferrule)

Conductor cross section AWG :- 26…14

Tightening torque :- 0.6 Nm ... 0.8 Nm

Ambient temperature (operation) :- -40 °C ... 60 °C

Ambient temperature (storage/transport) :- -40 °C ... 85 °C

Mounting type :- DIN rail mounting

Maximum altitude :- ≤ 2000 m

Condition :-  Used / Working

Price :-  Sales.plcadvance@gmail.com
