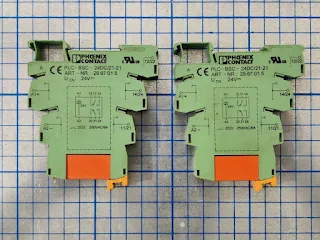

Phoenix Contact PLC-BSC-24DC/2
Mfr.
Part Number
:- Phoenix Contact PLC-BSC-24DC/2
Manufacturer
:- Phoenix Contact
Description :-
Phoenix Contact PLC-BSC-24DC/2
Full
Description :- 14 mm
PLC basic terminal block with screw connection, without relay or solid-state
relay, for mounting on DIN rail NS 35/7,5, 2 changeover contacts, input voltage
24 V DC
Nominal input voltage UN :- 24 V DC
Stripping length :- 8 mm
Screw thread :- M3
Conductor cross section rigid :- 0.14 mm² ... 2.5 mm²
Conductor cross section AWG :- 26…14
Tightening torque :- 0.6 Nm ... 0.8 Nm
Ambient temperature (operation)
:- -40 °C ... 60 °C
Ambient temperature (storage/transport) :- -40 °C ... 85 °C
Mounting type :- DIN rail mounting
2 pole 8A, 2 form C (CO) or 2 form A
(NO) contacts
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient
temperature up to 85°C
WG version: product in accordance to
IEC60335-1
Reflow version: for THR (Through-Hole Reflow)
soldering process
Operate/release time max., DC coil :-
8/6ms
Ambient temperature DC coil :- -40 to
85°C
Ambient temperature AC coil :- -40 to
70°C
Ambient temperature AgSnO2 contacts :- -40
to 70°C
Condition :- Used / Working
Price :- Sales.plcadvance@gmail.com
